Electrical stunning device
For chickens, ducks, geese and turkeys.
We have been constantly optimizing and improving...
SQ series electrical stunnning device are suitable for water bath lines
- The highly efficient stunning effect enables poultry to quickly faint, reducing the risk of wing breakage due to struggling；
- Voltage, Current and Frequency are adjusted and displayed intuitively for easy operation；
- Power isolation output, safe and reliable, easy to maintain；
- The product has over voltage, over current, over heat protection, safe and reliable；
- Products comply with animal welfare requirements；
- Real stunning rather than death, maintain the normal function of the heart and arteries, easy to drain blood；
- It can meet the production requirements of 1000 to 18000 pcs chickens per hour；
- It can meet the electrical stunning requirements of various types of chickens, ducks, geese and pigeons；
Selection Guide

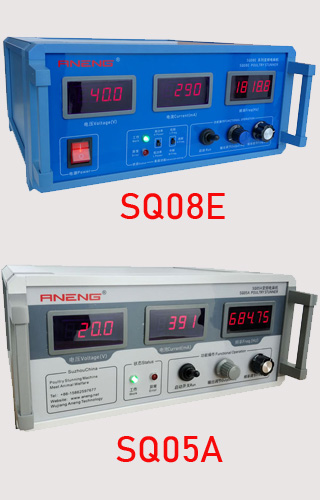

SQ08E
- Optimize the output waveform, the effect is better；
- Recommended production of 8000-18000 pcs chickens per hour；
- Output Frequency range 250-2000Hz
SQ05A
- Classic style, applied to thousands of slaughtering enterprises；
- Recommended output is less than 8000 animals per hour；
- Output frequency range 500-1200Hz

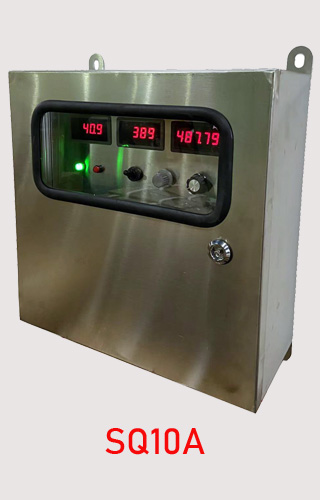

SQ10A
- Atainless steel waterproof chassis;More suitable for wet environment；
- Recommended output is less than 8000 animals per hour；
- Output frequency range 500-1200Hz
Let's pay attention to the following details to get the best effect of electrical stunning!！

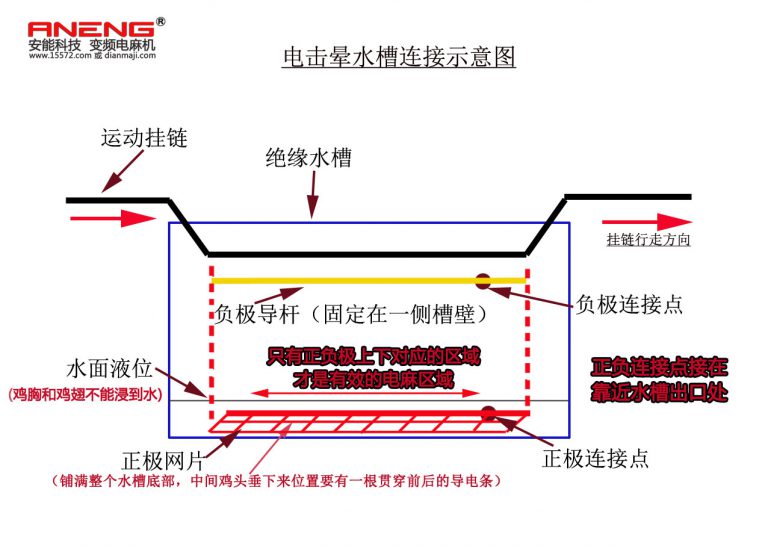

How to understand the effective range of electrical stunning
Only the area corresponding to the positive and negative electrodes is the effective electrical stunning area, and the chicken is required to be continuously effective electrical stunning in the whole bath tank to ensure good stunning effect

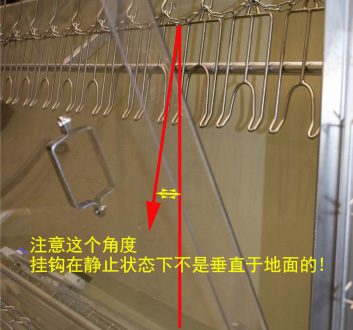

The Angle between the hook and the slider
This Angle is not perpendicular to the ground, and an Angle should be reserved to make the hook and the slider more closely contact after hanging the chicken, improve the electrical conductivity, and ensure the continuous electrical anesthesia effect;Otherwise, it is easy to appear frequent beating, interstitial electrical stunning, and poor consistency。

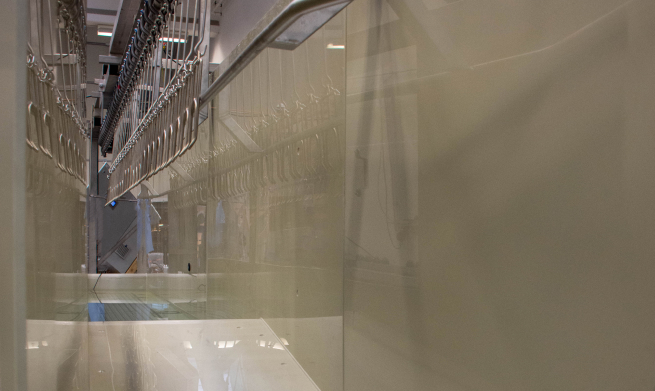

Requirements for the width of the electric stunning bath tank
The width of the electric bath tank should be related to the chain speed and the size of the chicken. We need to prevent the water level from rising during the operation of the chicken, as this can easily cause the chicken breast and wings to be submerged in water, resulting in a secondary electric stinning circuit and causing needle-like bleeding points on the chicken breast and blood stasis at the tips and roots of the wings。

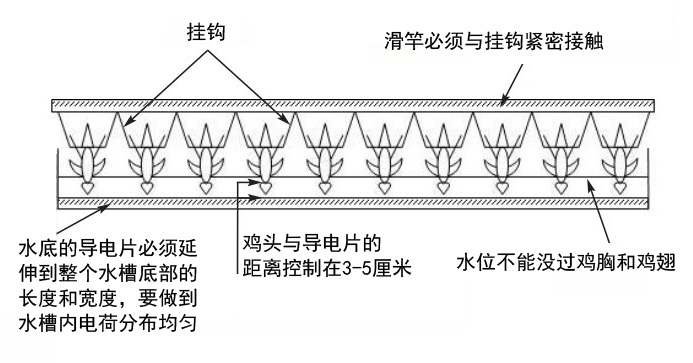

Distance between the chicken head and the conductive sheet
The conductive sheet is recommended to be welded into an 8-10cm square field grid shape with stainless steel material, and cover the bottom of the bath tank, and weld a conductive strip through the bath tank before and after the position of the chicken head hanging down to ensure the continuity of electrical stunning。
